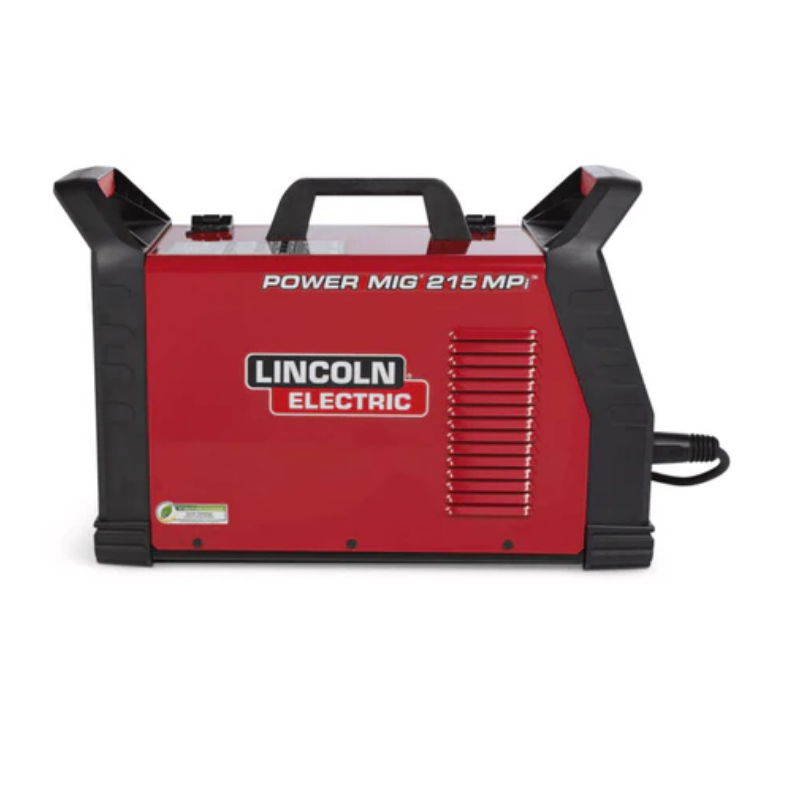

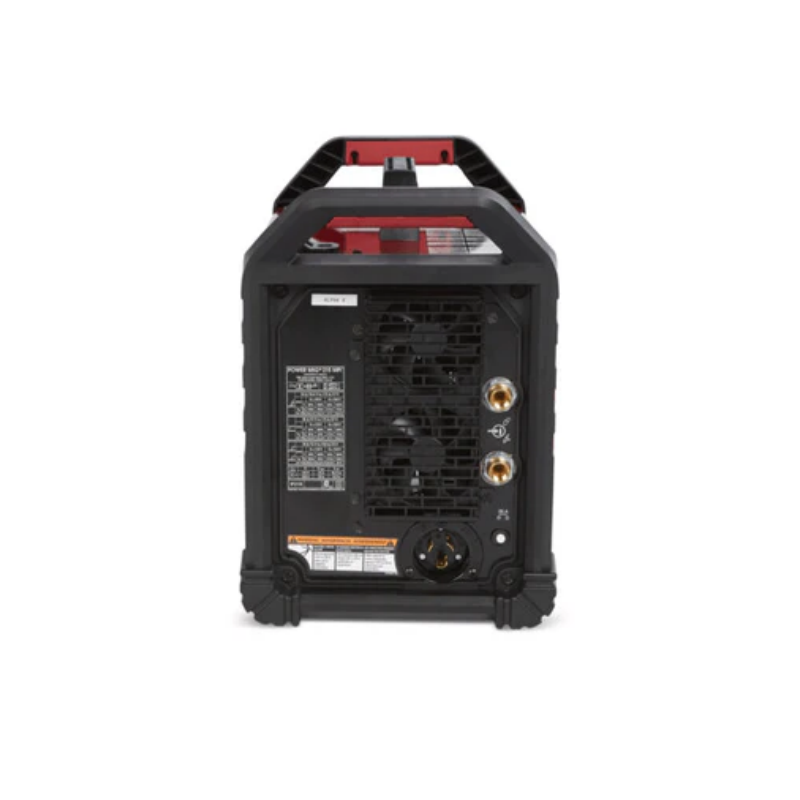

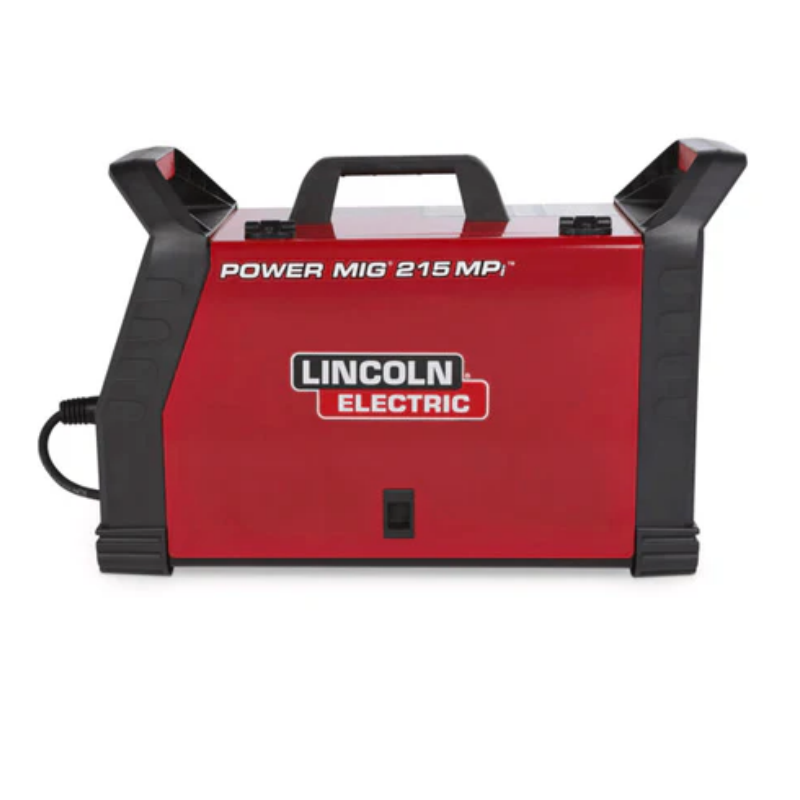

Lincoln Electric Power MIG 215 MPi Multi-Process Welder
Quantity
-
Detail
SIMPLE, VERSATILE, RELIABLE
The POWER MIG 215 MPi multi-process welder is a reliable, easy-to-use machine for the general fabricator, small contractor or repair personnel. The sleek and solid ergonomic design with multiple lift points maximizes mobility around the shop, and user-friendly technology makes the setup process and selection of weld settings incredibly simple. Take on any job – MIG, TIG, Stick or Flux-Cored – with the versatile POWER MIG 215 MPi welder.
Features
- Multi-Process Capable - Welds MIG, Flux-Cored, Stick, and DC TIG.
- Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
- Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop.
- Built in TIG Solenoid and Foot Pedal Adapter The POWER MIG 215 MPi welder is designed to accept a TIG torch, no install required.
- Robust and Reliable Wire Drive – Ensures proper and consistent feeding for optimal welding experience.
- Ready.Set.Weld® Technology – Simplifies setup by recommending optimal welding parameters for each welding procedure.
- ArcFX® Technology - Provides instant visual feedback on how settings affect the weld outcome.
- Memory Capability - Easily recall saved settings to get welding faster.
- Lightweight and Portable- Only 48 lbs.
What's Included
- (1) POWER MIG 215 MPi Multi-Process Welder
- (1) K4076-1 Magnum® PRO 175L Gun 10 ft. (3.0 m)
- (1) K3269-1 Magnum PRO 100SG Spool Gun
- (1) 230V to 120V Power Cord Adapter
- (1) Work Cable and Clamp
- (1) Electrode Holder and Lead Assembly
- (1) Adjustable Gas Regulator and Hose
- (1) Gasless Nozzle
- (1) Gun Cable Liner (pre-installed in gun)
- (1) Spindle Adapter
- (1) ED030631 Sample 2 lb (0.91 kg) Spool of SuperArc® L-56® MIG Wire
- (2) Contact Tips 0.025 in (0.6 mm)
- (2) Contact TIps 0.035 in (0.9 mm)
- (1) Drive Rolls 0.025-0.030 in (0.6-0.8 mm) and 0.035 in (0.9 mm) (Installed)
- (1) Knurled Drive Roll 0.030-0.045 in (0.8-1.1 mm)
- (1) Wire Guide 0.045 in (1.1 mm) and 0.025-0.035 in (0.6-0.9 mm)(Installed)
Specifications
MACHINE INPUTS & OUTPUTS
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 120/1/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | MIG: 105A/19.25V/40% 80A/18V/100% |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | TIG: 130A/15.2V/40% 100A/14V/100% |
| Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) | Stick: 85A/23.4V/40% 60A/22.4V/100% |
| Phase 1: Input Current at Max Rated Ouput #1 (Current) | 22A |
| Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) | 230/1/60 |
| Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) | MIG: 215A/24.8V/30% 120A/20V/100% |
| Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) | TIG: 175A/17V/30% 110A/14.4V/100% |
| Phase 1: Rated Output #2C (Current/Voltage/Duty Cycle) | Stick: 175A/27V/30% 110A/24.4V/100% |
| Phase 1: Input Current at MAX Rated Output #2 (Current) | 29A |
PRODUCT WEIGHTS & DIMENSIONS
| Dimensions (H x W x D) | 15.08 in x 10.88 in x 23.14 in (383 mm x 276 mm x 588 mm) |
| Net Weight | 48 lbs (21.8 kg) |
MACHINES
| Machines Processes | Stick (SMAW) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) |
| IEC Rating | IP21S |
| Max Rating | 220A |
| Output Range by Mode | MIG: 20-220A |
| Number of Operators per Machine | 1 |
| Machines Communication Technology | digital |
| Work Lead Connector Type | Dinse |
| Welding Gun Cable Assembly Length | Magnum PRO 175L |
| Work Cable Length | 10 FT |
| Spool Gun Compatible (Duty) | Light |
WIRE AND TIG FEEDERS
| UI type | TFT - Graphic |
| Wire Feeders Processes | MIG Flux Cored |
| Contact Tips Included | Yes |
| Maximum Wire Thickness | 0.045 in (1.1 mm) |
| Minimum Wire Thickness | 0.025 in (0.6 mm) |
| Sample MIG Wire Included | Yes |
BASIC SPECIFICATION
| Input Voltage | 120/230 |
| Input Current | 120V: 15A, 230V: 15.9A |
| Input Hertz | 60 |
| Input Power | 120/230/1/60 |
| Input Phase | 1 |
| Mode Icon | CC/CV |
| Output Range | 120V: 20-140A DC 230V: 20-220A DC Max. OCV : 56V |
| Polarity | DC |
| Rated Output | 120V: 105A/19.3/40% 230V: 215A/24.8V/30% |
APPLICATION
| Typical Application | Automotive Brewery Distillery General Fabrication Maintenance & Repair Repair Welding |
